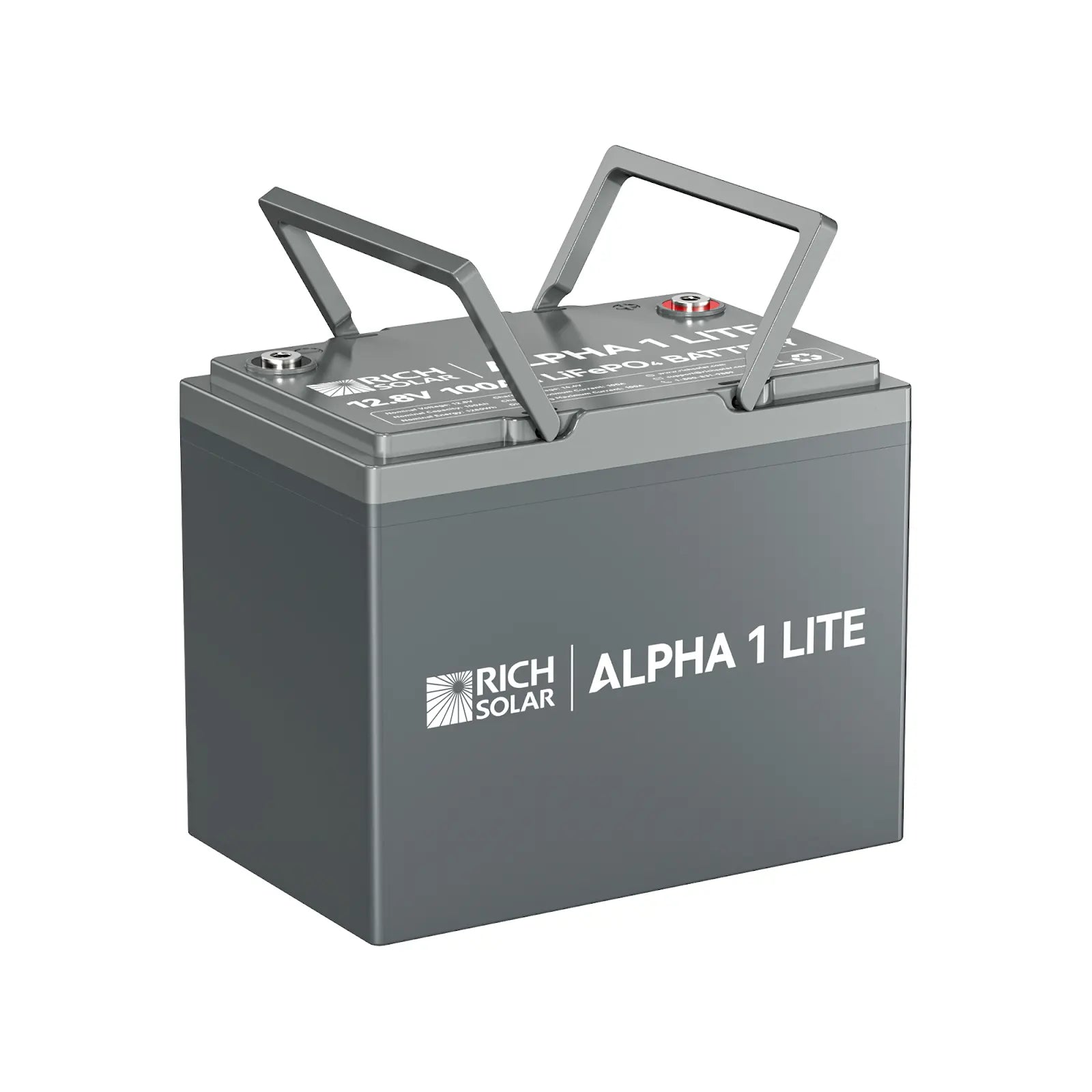

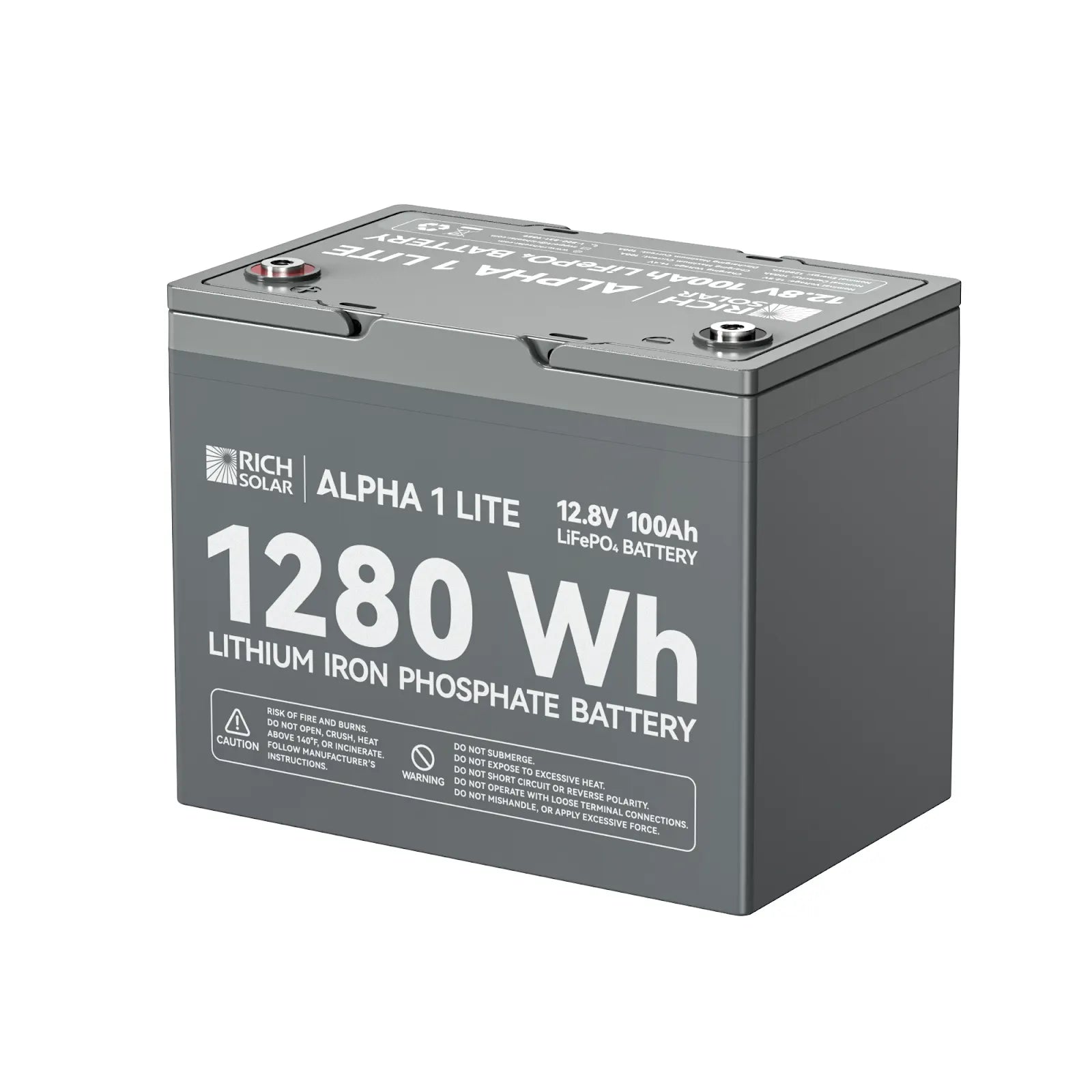

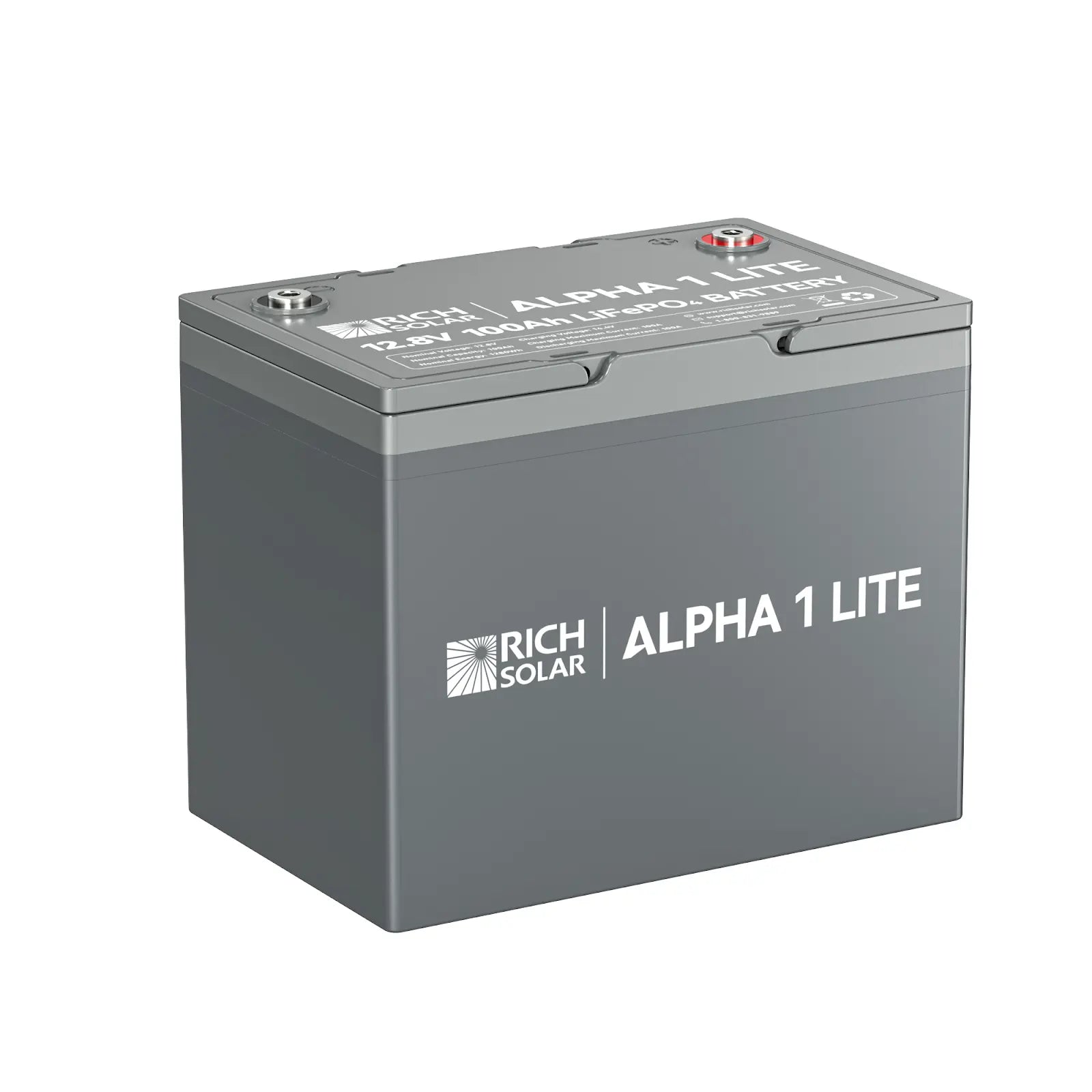

The RichSolar ALPHA 1 LITE 12V 100Ah LiFePO4 Battery delivers exceptional energy storage in a compact and lightweight design, ideal for off-grid applications, RVs, trailers, vans, boats, and more. With over 4,000 charge/discharge cycles and a deep-cycle lithium-ion-phosphate (LiFePO4) build, the ALPHA 1 LITE offers reliable, low-maintenance power for any adventure or off-grid setup.

Key Features

• Lightweight and Compact: Easy to transport and install, making it perfect for mobile applications.
• Deep-Cycle Lithium Battery: Stores 100Ah of reliable energy for long-lasting use.
• Low Maintenance: Durable and built with premium materials for hassle-free operation.
• 4,000+ Cycles: Extended lifecycle ensures maximum value and reliability.
• BMS Protection: Smart Battery Management System safeguards against overcharging, over-discharging, and short circuits.
• Wide Temperature Range: Performs efficiently in extreme weather conditions.

Specifications

Battery Specifications

• Nominal Voltage: 12.8V
• Nominal Capacity: 100Ah
• Minimum Capacity: 99.5Ah
• Energy: 1,280Wh

Operating Specifications

• Operating Voltage: 12.8V
• Charge Voltage: 14.4V
• Continuous Charge Current: 100A
• Continuous Discharge Current: 100A
• Cycle Life: >4,000 cycles
• Self-Discharge: <5% per month

Temperature Ratings

• Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
• Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
• Storage Temperature: 14℉ to 113℉ (-10℃ to 45℃, 90% RH Max)

Physical Specifications

• Dimensions: 10.2 x 6.6 x 8.3 inches
• Weight: 24.3 lb

BMS Operation

• Overcharge Protection:
  • Detection Voltage: 3.75V ± 0.03V
  • Detection Delay Time: 1000ms ± 500ms
  • Recovery Voltage: 3.55V (Min 3.40V, Max 3.60V)
• Over Discharge Protection:
  • Detection Voltage: 2.20V ± 0.08V
  • Detection Delay Time: 1000ms ± 500ms
  • Recovery Voltage: 2.70V ± 0.10V

Applications

The ALPHA 1 LITE is ideal for:

• RVs and campers
• Boats and trailers
• Off-grid systems
• Emergency backup power

Why Choose the ALPHA 1 LITE?

With its lightweight design, high-performance lithium cells, and advanced BMS, the ALPHA 1 LITE ensures efficient and reliable energy storage wherever you need it. Whether you're powering an off-grid home, preparing for an adventure, or ensuring uninterrupted energy for your RV, the ALPHA 1 LITE is your go-to solution.

Upgrade your energy system with the RichSolar ALPHA 1 LITE 12V 100Ah LiFePO4 Battery today and experience the reliability of premium lithium technology!
